Q&A,for more info, please go to:



In this manual we will explain the connection of wires and the connection with a ZigBee Light



Link Gateway.

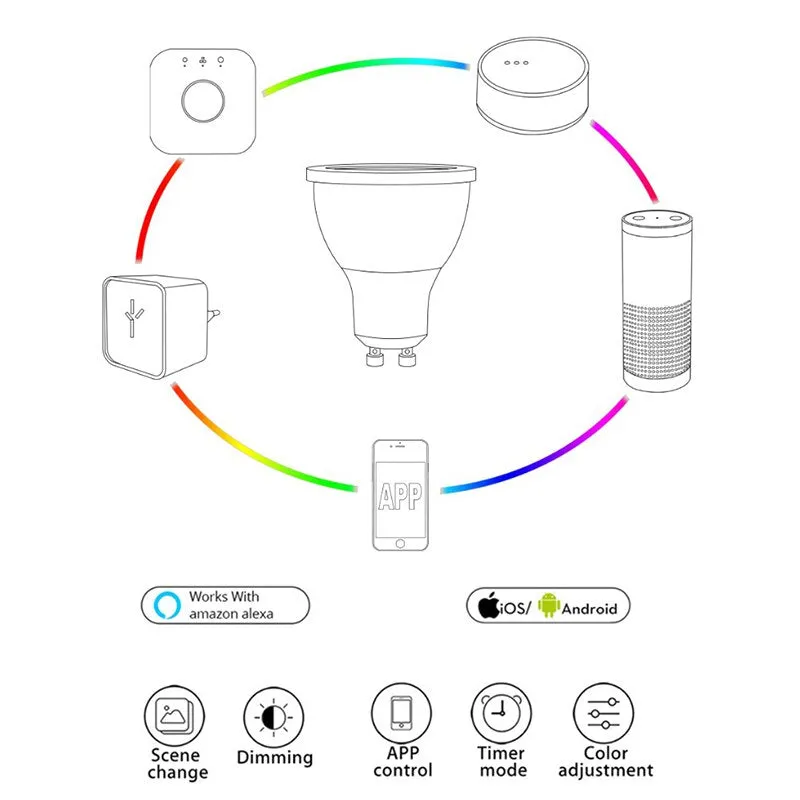

These devices works with many ZigBee Light Link Gateways* like , Amazon Echo Plus.

Installation:

1.Turn off the Power.

2.Plug in the bulb.

3.Now you can connect it with the gateway.

Connection with Gateway:

1.Connect the LED product to the controller see section “Installation”.

2.Start the device searching on the ZigBee Light Link Gateway, it could take some time.

If the Gateway does not find the device, plug power off/on or make a reset.

3.The Gateway found your device and you can assign it to the different

rooms/zones/groups.

4.Now you can use the device.

Reset:

1.Switch on your device.

2.Now switch off and on within 2 seconds.

3.Repeat off/on four times.

4.Reset is done when the device is switched on in the fifth time and the light stays on after

blinking 4 times

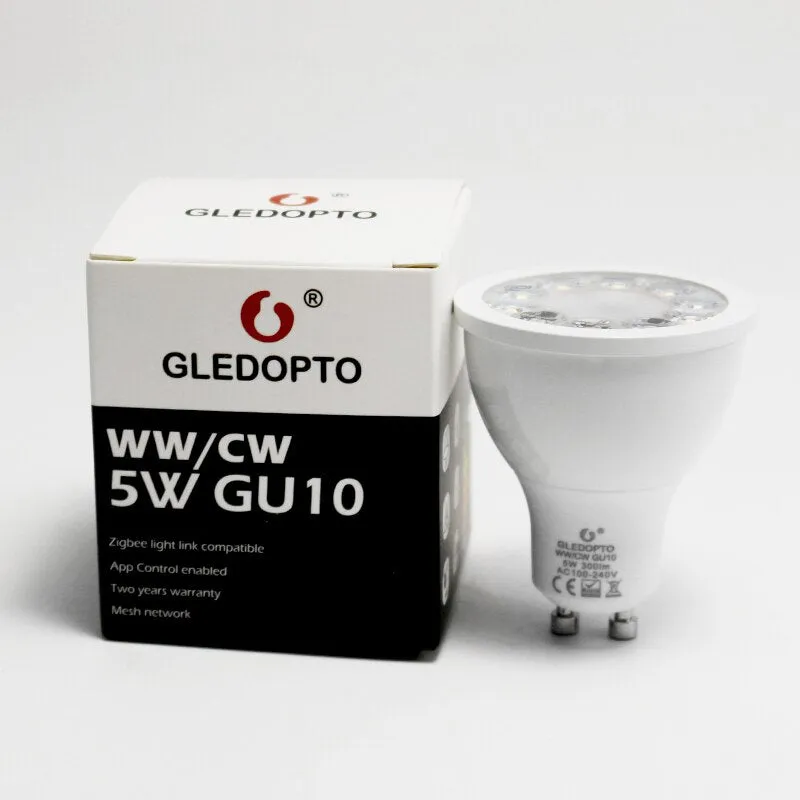

LED Bulb GU10

• Model No: GU10 WW/CW Cool white Warm white)
• Power : 5W
• Voltage : 100-240V
• Lifespan : 50000hrs
• Max Diameter: 49.5mm
• Max Length: 58mm
• Color Temperature: 2700-6500K
• Luminous Flux: 300LM-350LM
• Luminous Efficiency: 90LM/W
• CRI: >80

'
